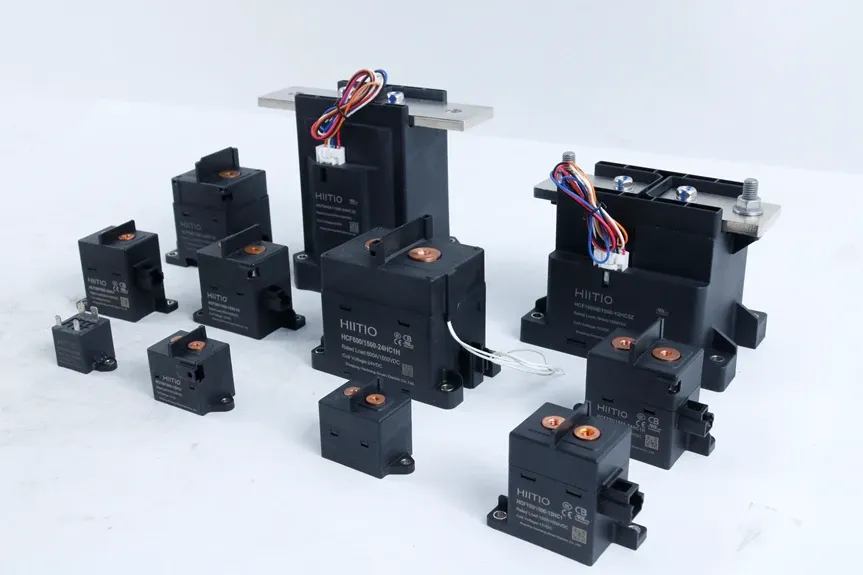

Critical power systems form the backbone of modern infrastructure, supporting everything from data centers and hospitals to industrial manufacturing facilities and telecommunications networks. When these systems experience faults, overloads, or catastrophic failures, the ability to rapidly and reliably disconnect power sources can mean the difference between a manageable incident and a devastating catastrophe. As power systems evolve toward higher voltages and more complex architectures, the role of HVDC contactors in emergency protection continues to expand.
The fundamental challenge in emergency disconnect scenarios lies in safely interrupting large amounts of stored energy under fault conditions. This demanding application pushes DC contactors and relays to their performance limits, requiring sophisticated engineering to achieve reliable operation across thousands of potential fault scenarios. Modern critical power systems operating at 380VDC, 540VDC, or even higher voltage levels present particularly challenging conditions, as the absence of AC zero-crossings means that arc energy must be absorbed and dissipated entirely by the contactor’s interruption mechanism. Data centers transitioning to 380VDC distribution architectures, for instance, require emergency disconnect devices capable of breaking currents exceeding 10,000A under short-circuit conditions while maintaining arc containment to prevent secondary damage.
Emergency disconnect applications place unique demands on contactor design and selection that extend far beyond normal switching operations. Understanding what a DC contactor must accomplish in emergency scenarios requires examining both the electrical and mechanical stresses involved. When a fault occurs, the contactor must open against potentially welded contacts, extinguish arcs carrying extreme currents, withstand electromagnetic forces that can reach hundreds of newtons, and maintain insulation integrity despite ionized gas and metal vapor in the contact chamber. The entire sequence from fault detection to complete current interruption typically must occur within 10-50 milliseconds to prevent equipment damage or personnel injury. This rapid response requirement influences every aspect of contactor design, from coil drive circuits and contact spring systems to arc chamber geometry and magnetic blow-out configurations.
Fault Detection and Response Integration
Effective emergency disconnect systems require seamless integration between fault detection mechanisms and contactor actuation. Modern critical power installations employ multiple layers of protection monitoring voltage, current, temperature, insulation resistance, and ground fault conditions. When protective relays detect fault signatures exceeding preset thresholds, they must communicate trip commands to emergency disconnect contactors with minimal delay.
The interface between protection systems and contactors typically employs one of several architectures:
- Direct coil control where protective relays switch power directly to contactor coils, offering simplest implementation but requiring careful coordination of voltage levels and inrush current capabilities
- Electronic driver stages that receive logic-level signals from protection controllers and provide optimized coil energization profiles for fastest response
- Intelligent contactor modules incorporating onboard microcontrollers that receive digital commands via fieldbus protocols and execute pre-programmed opening sequences
- Redundant actuation paths employing multiple independent coils or mechanical release mechanisms to ensure opening even if primary actuation fails
Response time from fault detection to contact separation represents a critical performance metric. High-performance emergency disconnect contactors achieve total clearing times under 15 milliseconds, with contact separation beginning within 5 milliseconds of coil de-energization. This rapid response requires specialized spring systems that store significant mechanical energy, released instantaneously to overcome contact pressure and accelerate moving contacts to opening velocity.
Arc Interruption in Emergency Scenarios
The arc interruption process during emergency disconnect operations presents the most challenging aspect of contactor performance. Unlike normal load switching where current gradually decreases before interruption, emergency disconnect scenarios require breaking full load current or fault currents that may reach 10-50 times nominal ratings. The energy contained in these arcs can vaporize contact material, generate temperatures exceeding 10,000°C, and create pressure waves capable of damaging surrounding components.
Advanced HVDC contactors employ multiple complementary techniques to manage arc energy:
Magnetic blow-out systems utilize permanent magnets or electromagnets to generate magnetic fields perpendicular to the arc path. The interaction between arc current and magnetic field creates Lorentz forces that drive the arc rapidly into arc chutes where it can be cooled and extinguished. Proper magnetic circuit design ensures field strength sufficient to move arcs even under maximum fault current conditions.
Arc chute structures consist of series of parallel metal or ceramic plates that divide the arc into multiple shorter segments. Each segment forms near the plate surfaces where cooling is most effective, and the sum of individual arc voltages exceeds the system voltage, forcing current to zero. High-voltage DC applications may employ 20-50 or more arc splitter plates to achieve adequate arc voltage.
Contact materials for emergency disconnect applications must withstand extreme thermal and mechanical stresses. Silver-tungsten and silver-tungsten-carbide composites provide excellent arc erosion resistance, though at the cost of higher contact resistance compared to pure silver. Some designs employ dual-material contacts with silver surfaces for low resistance during normal operation and refractory metal backing for arc interruption capability.
Arc chamber venting allows controlled release of hot gases and metal vapor while containing the arc electromagnetically and thermally. Vent design must balance pressure relief requirements against the need to prevent flame or hot gas ejection that could ignite nearby materials or endanger personnel.
Mechanical Reliability Under Stress
Emergency disconnect operations subject contactors to mechanical stresses far exceeding those encountered in normal switching. The high-speed opening required for fast response generates impact forces as moving contacts reach their end-of-travel position. These impacts, repeated over thousands of operations, can cause mechanical wear, contact bounce, or structural fatigue if components are not adequately designed.
Key mechanical design considerations include:
- Contact spring systems providing sufficient force to maintain low contact resistance during normal operation while enabling rapid opening when released
- Damping mechanisms to minimize contact bounce and ensure single-operation opening without multiple arc reignitions
- Bearing and pivot systems designed for high-cycle operation with minimal friction and wear
- Structural reinforcement to withstand electromagnetic forces during high-current interruption
- Environmental sealing to maintain mechanical reliability despite exposure to arc byproducts and environmental contaminants
Long-term reliability testing of emergency disconnect contactors typically involves thousands of full-current interruption cycles at rated voltage, followed by detailed examination of contact erosion, mechanical wear, and electrical performance degradation. Acceptance criteria ensure that contactors maintain specified breaking capacity throughout their rated operational life, typically 10,000-100,000 full-load interruptions depending on application requirements.
Future Trends and Technologies
The evolution of critical power systems toward higher voltages, greater power densities, and more distributed architectures continues to challenge emergency disconnect technologies. Several emerging trends shape future development:
Hybrid switching technologies combining mechanical contactors with solid-state switching elements offer potential for even faster response times and reduced arc energy. The semiconductor device handles initial current commutation while the mechanical contact provides long-term isolation after current interruption.
Advanced monitoring and predictive maintenance capabilities leverage sensors, data analytics, and machine learning to predict contactor failures before they occur. Monitoring parameters including contact resistance trends, operation timing variations, and thermal patterns enables condition-based maintenance replacing scheduled replacement programs.
Integration with digital protection and control systems enables coordinated system responses to faults, optimizing disconnection strategies based on fault location, magnitude, and system operating conditions. This intelligence allows emergency disconnect systems to adapt their behavior to specific scenarios rather than applying fixed protection schemes.
As critical infrastructure increasingly depends on reliable electrical power, the role of HVDC contactors in emergency protection becomes ever more vital. These robust, reliable devices stand ready to act in milliseconds, protecting valuable equipment and ensuring personnel safety when systems face their most challenging moments.
